Aircraft and Wheeled Helicopter Tow Tug
Aircraft and Wheeled Helicopter Tow Tug
Aerospace Products
- Model number: PH-AS-GHE-WTT-20
Product Overview

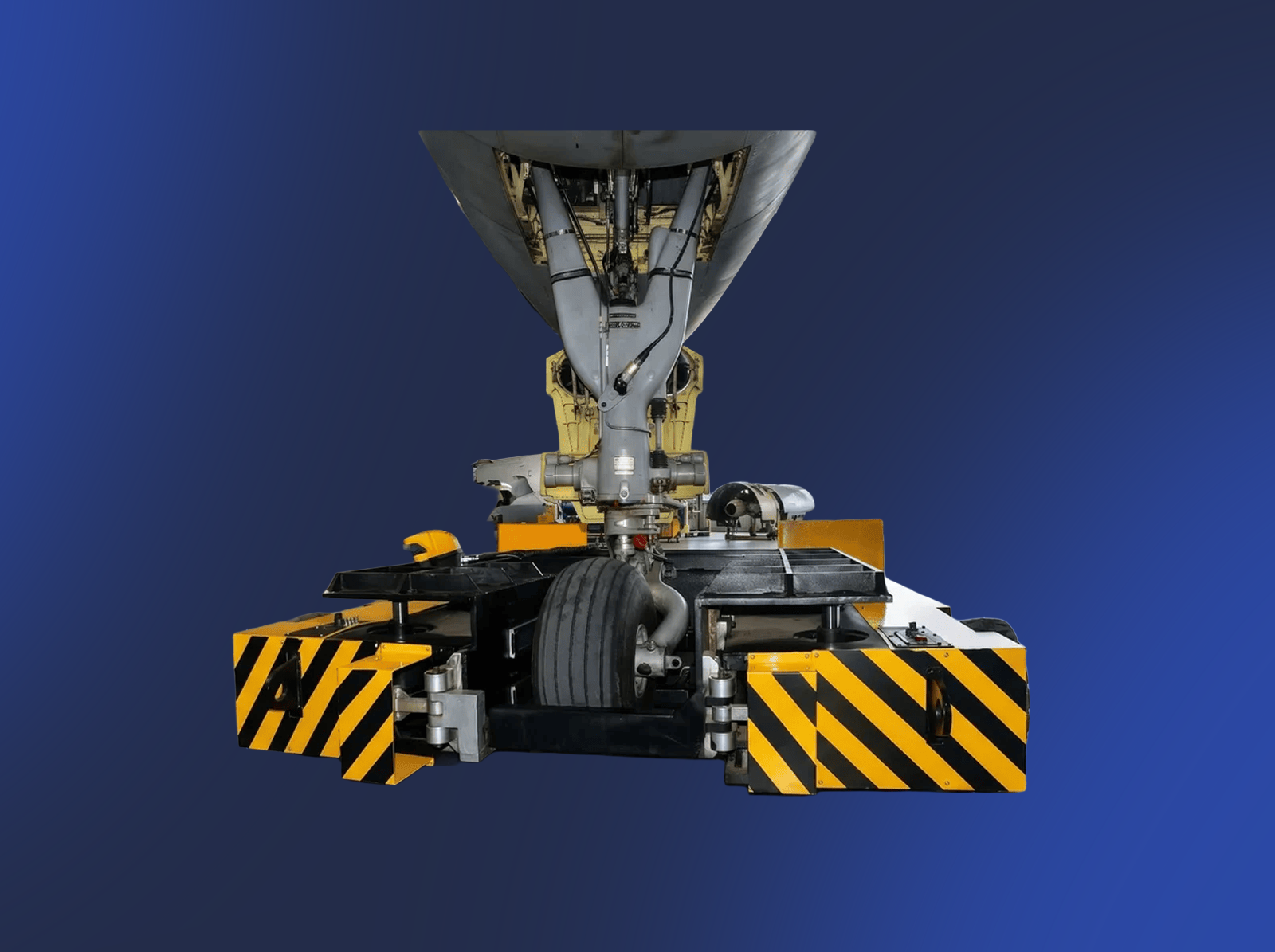

The Aircraft and Wheeled Helicopter Tow Tug is used to tow aircraft and helicopters in the 20 Ton weight class without the use of a towbar. It is fully battery operated, allowing emission-free ground movement of aircraft across the runway and hangar. It is operated with a wired or wireless remote control. The independent drive wheels enable 360° rotation around the clamped wheel allowing parking in tight spaces and easy manoeuvrability.
Optional anti-collision sensors can also be added. The Tow Tug is also available in an electrical only variant (no hydraulics for clamping and lifting).
Applications
- Aircraft and Helicopter Towing
- Ground Handling Operations
- Repositioning on Hangar and Runway
Technical Specifications
- Battery operated with a range of 10km of continuous towing
- Towing speed up to 5 kmph
- Remote operated with both wired and wireless options
- Optional anti-collision sensors for obstacle detection and avoidance
- Optional electric-only system with electric actuators for lower maintenance, weight and noise
- Compatible with wheel diameters from 120 mm to 600 mm with a width up to 550mm.
