Pitot Static Air Data Leak Tester
Pitot Static Air Data Leak Tester
Aerospace Products
- Model number: PHPL-AS-GSE-PSADTS-6065-4CH
Product Overview

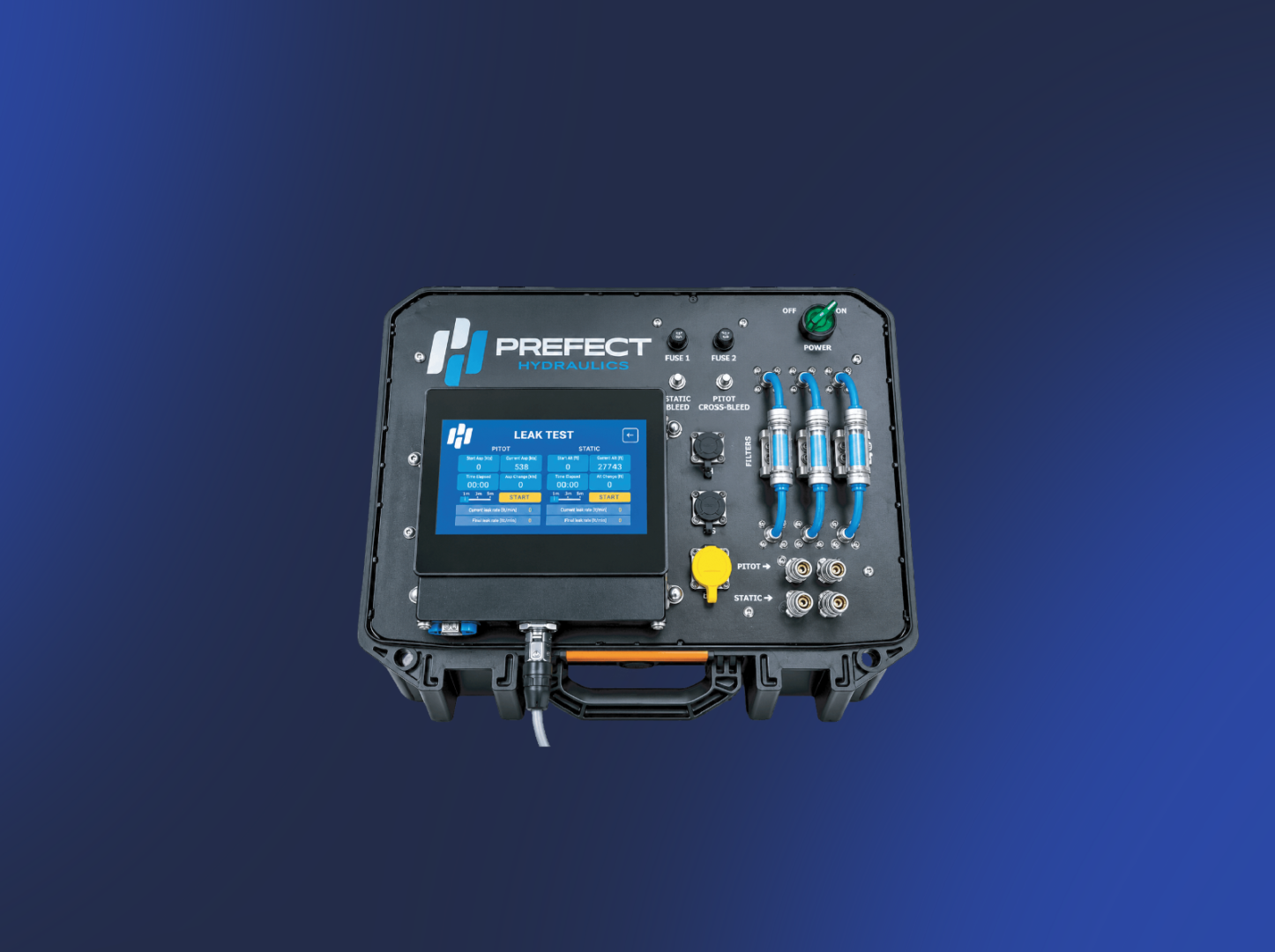

The Pitot Static Air Data Leak Tester (Model 60654C) is used to leak test and calibrate the avionics on helicopters, aircraft, UAVs, drones, jets and lab equipment. With a wide operating envelope of up to 60,000 ft and 650 knots, it is suitable for a huge variety of aircraft. It offers 4-channel control with 2 pitot and 2 static channels, and is RVSM compliant (lab tested).
With a 10 – 12 hour battery life, a full 8″ touchscreen HMI (wired or wireless via Wi-Fi), remote debugging and emergency venting valves for enhanced safety, this lightweight and compact test set is ready for any challenge, anywhere.
Applications
- Calibration of Avionics
- Aircraft and Helicopter Leak Testing
- Remote-Area Testing
- Flight-Profile Monitoring
Technical Specifications
- Altitude range of -2,000 ft to +60,000 ft with 1 ft resolution
- Airspeed range of 0 to 650 kts with 0.1 kt resolution
- Vertical speed up to 20,000 fpm and acceleration up to 1,000 kts/min
- Mach range of 0 to 3.0 Mach with 0.001 Mach resolution and accuracy
- 4-channel control with 2 pitot and 2 static channels
- 8″ touchscreen HMI with Ethernet and optional Wi-Fi connectivity
- 10 – 12 hours of continuous battery operation, 3 hour charging time (0 – 100%)
- Power supply of 110 – 230 VAC or 170 – 270 VAC (with included charger) and 24 VDC direct, 100W consumption
- 40µm panel-mounted vacuum and pressure filters for tool-free replacement
- Direct, real-time data logging to USB drive
- Operating temperature of -30°C to +55°C
- Dimensions of 44.55 x 36.09 x 18.19 cm and weight of 13.2 kg (including HMI and battery)
